Red/Black Zip Cord
This Red/Black Zip Cord is intended for use in DC power applications such as Amateur Radio, Auto/Stereo, Robotics, R/C Aircraft, Automotive Burglar Alarms. Two conductor "ZIP" Cord construction for easy separation and installation.
This Red/Black Zip Cord is intended for use in DC power applications such as Amateur Radio, Auto/Stereo, Robotics, R/C Aircraft, Automotive Burglar Alarms. Two conductor "ZIP" Cord construction for easy separation and installation.
Teflon (PTFE) Coated High Temperature Stranded Wire (600 Volt)
Wire for high temperature use having good flexibility. For use where abrasion resistance is required. Recommended for critical applications such as: aviation, military, commercial, racing. Reinforced with abrasion resistant mineral fillers.
Wire for high temperature use having good flexibility. For use where abrasion resistance is required. Recommended for critical applications such as: aviation, military, commercial, racing. Reinforced with abrasion resistant mineral fillers.
Colored Magnet Wire
High quality craft wire for artists, instructors, hobbyists and manufacturers. Permanently colored copper wire. The Polynylon coating can be bent and twisted with confidence. Also called artistic wire and hobby wire. Available in multiple colors.
High quality craft wire for artists, instructors, hobbyists and manufacturers. Permanently colored copper wire. The Polynylon coating can be bent and twisted with confidence. Also called artistic wire and hobby wire. Available in multiple colors.

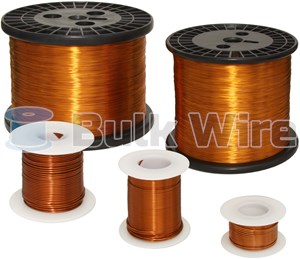

Magnet Wire
Perfect for Winding Coils, Inductors, Transformers, Lighting, Ballasts, Relays & Timers, Motor Applications. Insulated with polyurethane and nylon.
Perfect for Winding Coils, Inductors, Transformers, Lighting, Ballasts, Relays & Timers, Motor Applications. Insulated with polyurethane and nylon.

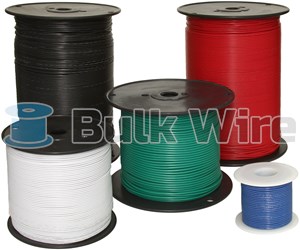

Solid Hookup Wire (300 Volt) UL 1007/1569
Internal appliance and point to point electronic wiring. Great for Hobbyist. Resistant to moisture, oil solvents, and fungus. Passes VW-1 Vertical Flame Test. Solid tinned copper. UL Listed, UL Style 1007. CSA Listed, CSA TR-64.
Internal appliance and point to point electronic wiring. Great for Hobbyist. Resistant to moisture, oil solvents, and fungus. Passes VW-1 Vertical Flame Test. Solid tinned copper. UL Listed, UL Style 1007. CSA Listed, CSA TR-64.

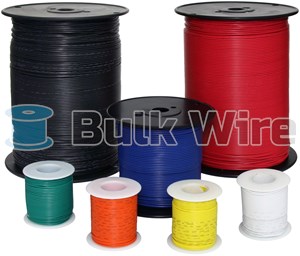

Stranded Hookup Wire (300 Volt) UL 1007/1569
Internal appliance and point to point electronic wiring. Great for Hobbyist. Resistant to moisture, oil solvents, and fungus. Passes VW-1 Vertical Flame Test. Stranded tinned copper. UL Listed, UL Style 1007. CSA Listed, CSA TR-64.
Internal appliance and point to point electronic wiring. Great for Hobbyist. Resistant to moisture, oil solvents, and fungus. Passes VW-1 Vertical Flame Test. Stranded tinned copper. UL Listed, UL Style 1007. CSA Listed, CSA TR-64.

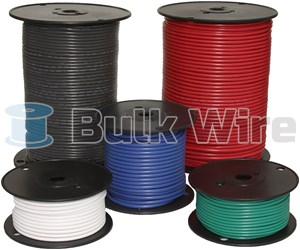

Stranded Hookup Wire (600 Volt) UL 1015
Internal appliance and point to point electronic wiring. Great for Hobbyist. Resistant to moisture, oil solvents, and fungus. Passes VW-1 Vertical Flame Test and is self-extinguishing. Stranded tinned copper. UL Listed, UL Style 1015. CSA Listed, CSA TEW.
Internal appliance and point to point electronic wiring. Great for Hobbyist. Resistant to moisture, oil solvents, and fungus. Passes VW-1 Vertical Flame Test and is self-extinguishing. Stranded tinned copper. UL Listed, UL Style 1015. CSA Listed, CSA TEW.
Stranded Hookup Wire (600 Volt) UL 1028
UL Style 1028. Tinned Copper 600V. Insulated 3/64” PVC. 40°C to 105°C. Internal wiring of appliances where exposed to temperature not exceeding 105°C. Resistant to moisture, oil, solvents and fungus and is self-extinguishing. PVC compound to resist deforma
UL Style 1028. Tinned Copper 600V. Insulated 3/64” PVC. 40°C to 105°C. Internal wiring of appliances where exposed to temperature not exceeding 105°C. Resistant to moisture, oil, solvents and fungus and is self-extinguishing. PVC compound to resist deforma

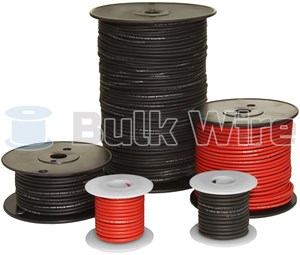

Test Lead Wire
Extremely flexible rubber coated noodle type wire for robotics, test leads and any situation where flexibility is required.
Extremely flexible rubber coated noodle type wire for robotics, test leads and any situation where flexibility is required.
Power Supply Cord SVT 18/2
Power Supply Cord is also called Portable Cord, Vacuum Cleaner Cord or Leviton Electricord. Available in gauge 18/2, Black.
Power Supply Cord is also called Portable Cord, Vacuum Cleaner Cord or Leviton Electricord. Available in gauge 18/2, Black.
Specifications
Conductor
Extra flexible soft bare copper stranding for maximum flexibility and conductivity
Insulation
Automotive grade "GPT" PVC insulation which is oil & gas resistant
Temperature Range
-40°C to +80°C (-40°F to +176°F)
Voltage
300 VAC
Compliances
- Designed to meet UL VW-1 Vertical Wire Flame Test
- RoHS Compliant
Specifications
Conductor
Silver-plated stranded copper wire
Insulation
Extruded PTFE
Temperature Range
-65°C to +200°C (-85°F to +392°F)
Compliances
- MIL-W-16878E/4 Type E
- MIL-STD-104
Applications
- Aviation
- Military
- Racing
- Commercial
Voltage Rating
600 VAC
Specifications
Conductor
Soft copper solid round conductor
Insulation
Heavy Polynylon
Colors
Red and Green
Temperature Rating
HPN Style 155°C (311°F)
Applications
- Crafts
- Artists
- Hobbies
- Instructors
Specifications
Conductor
Soft copper solid round conductor
Insulation
Insulation base coat: modified polyester resin. Overcoat: modified amide imide resin.
Color
Amber (typical)
Thermal Class
200°C (392°F), thermal index (N)
Compliances
- NMX-J-482
- NMX-J-489
- NEMA MW 35-C
- NEMA MW 73-C
Applications
- High speed winding processes for: Open motors, airtight motors, automotive coils.
- Manufacturing of compact coils for applications where additional copper is required in stator and rotor grooves.
Properties
- Excellent thermal stability, excellent dielectric and mechanical properties.
- Very good chemical resistance to common solvent and coolants.
- Better sliding during coil insertion in slots (reduced friction factor).
- High resistance to abrasion.
- Chemically resistant to freon: 12, 22 and 134 A
Specifications
Conductor
Fully annealed tinned solid copper per ASTM B-33
Insulation
Premium-grade, color-coded PVC
Temperature Range
-20°C to +105°C (-4°F to +221°F)
Voltage Rating
300 VAC
Compliances
- UL Style 1007 - 80°C
- UL Style 1569 - 105°C
- CSA TR-64 - 90°C
- Designed to meet UL VW-1 Vertical Wire Flame Test
- RoHS Compliant
Applications
- Internal wiring of electrical and electronic equipment
- Internal wiring of panels and meters
- Point-to-point wiring
Specifications
Conductor
Fully annealed tinned stranded copper per ASTM B-33
Insulation
Premium-grade, color-coded PVC
Temperature Range
-20°C to +105°C (-4°F to +221°F)
Voltage Rating
300 VAC
Compliances
- UL Style 1007 - 80°C
- UL Style 1569 - 105°C
- CSA TR-64 - 90°C
- Designed to meet UL VW-1 Vertical Wire Flame Test
- RoHS Compliant
Applications
- Internal wiring of electrical and electronic equipment
- Internal wiring of panels and meters
- Point-to-point wiring
Specifications
Conductor
Fully annealed tinned stranded copper per ASTM B-33
Insulation
Premium-grade, color-coded PVC
Temperature Range
-20°C to +105°C (-4°F to +221°F)
Voltage Rating
600 VAC
Compliances
- UL Style 1015 - 105°C
- CSA Type TEW
- Designed to meet UL VW-1 Vertical Wire Flame Test
- RoHS Compliant
Applications
- Internal wiring of electrical and electronic equipment
- Internal wiring of panels and meters
- Point-to-point wiring
Specifications
Conductor
Stranded tinned copper
Insulation
3/64" PVC, -40° C to 80° C
Voltage
600 V
Specifications
UL Listed, UL Style 1028.
Variants
Available in gauges 8 in colors Black, Red, Green and White.
Specifications
Conductor
Extra flexible soft stranded bare copper.
Insulation
Premium-grade, color-coded PVC
Voltage Rating
300 VAC
Applications
- Automotive
- Speakers
Specifications
Conductor
Extra flexible soft stranded tinned copper per ASTM B-33
Insulation
Premium-grade, color-coded rubber
Temperature Range
-20°C to +60°C (-4°F to +140°F)
Voltage
5,000 VAC
Applications
- Test Equipment
- Oscillators
- Robotics
- Analyzers
- Meters
- Wherever extra flexibility is necessary
Specifications
Conductor
18 AWG annealed stranded bare copper per ASTM B-174
Insulation
Premium-grade, color-coded PVC. Resists Acids, Alkalies, Ozone.
Temperature Range
-20°C to +60°C (-4°F to +140°F)
Compliances
- UL Listed
- CSA Certified
- Designed to meet UL VW-1 Vertical Wire Flame Test
Voltage
300 V
Applications
- Vacuum cleaners
- Food mixers
- Office equipment
